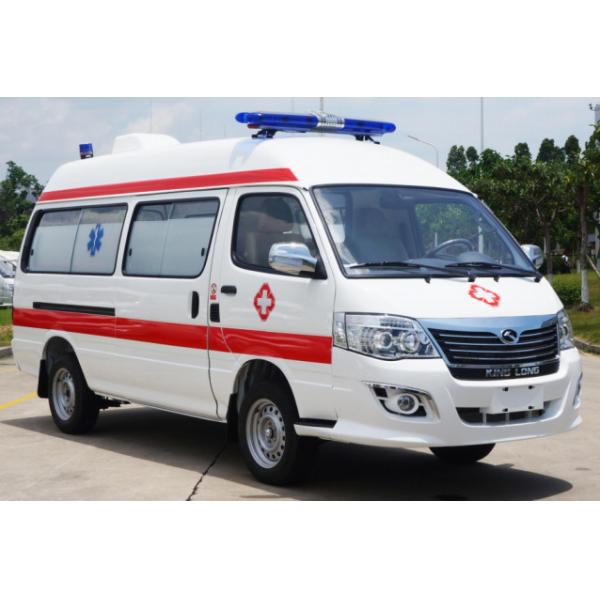

Jinlong medical ambulance gasoline 7 seats 4×2
Serial number vehicle technical parameters:
1 Body size mm mm: 5270×1700×2380 (length× width× height)
2 wheelbase mm: 2890
3. The total weight of the vehicle with full load is kg: 2660
4 Vehicle curb weight kg: 1845
5 suspension system: McPherson suspension in front and leaf spring suspension in rear are independent.
6 Minimum ground clearance mm: 198
7 Minimum turning radius M: 6.15
8 fuel type: gasoline
9 Tank volume (L): 55
10 Engine model V22H
11 displacement ml: 2237
12 rated power kw (HP)/rpm: 85
13 Track (front/rear) mm mm: 1450/1430
14 Axle load (front/rear) kg kg: 1270/1390
15 front suspension/rear suspension mm mm: 1300/1080,
16 Emission standard: GB18352.6-2016 National VI
17 drive mode: center-mounted rear drive
Transmission: 5-speed manual transmission
19 top speed km/h: 130
20 tyre size model 195/70 r15c,
21 Brake system front disc rear drum
22 rated passenger (including driver) 5-7
Main configuration of vehicles
23 All-metal closed load-bearing body
24 ABS+EBD
25 High Penetration Crystal Diamond Headlights
26 front row electric doors and windows
27 6-way adjustment of driver's seat
28 keys, 2.
Original system of 29 cab medical cabin
30 white bumper
31 spare tire and spare tools
32 High position brake light
The standard color of the car body is Arctic white.
Body height high top
Exterior hub steel ring
Body color strip
Security configuration
The seat belt is not attached to the alarm. The driver's seat belt is not attached to the alarm.
Auxiliary braking system ABS+EBD auxiliary braking system
A 0.5kg fire extinguisher.
Electrical system headlight headlight headlight headlight fog lamp brake light tailgate high brake light
Air conditioning system: front and rear air conditioning.
Warm air front and rear warm air
Operational configuration: manual exterior rearview mirror
Front door window electric lifting remote control central control
Internal control unlocking of tailgate opening mode
Bumper with tailgate step and rear step
Warning light alarm system: the cab is equipped with alarm, the warning light control button, and the left and right sides are equipped with LED flashing lights.
Central power distribution system: power socket, 1000W intelligent inverter system, high-energy maintenance-free battery, which can provide 220V and 12V power.
Medical interior decoration: environmental protection materials are adopted, and multiple medical lockers are installed.
Air conditioning and lighting system,
The central oxygen supply system is installed at the left rear side of the medical cabin: 2 10-liter oxygen cylinders, 2 German oxygen terminals, 1 graduated flow humidifying bottle and 1 hose connector.
A new forward and backward ventilation system is installed at the top of the medical cabin.
Ultraviolet delay disinfection lamp,
2 pieces of hidden infusion hooks in medical cabin.
A front-rear intercom system with the cab is installed at the middle partition of the medical cabin.
Equipped with an automatic boarding stretcher.
